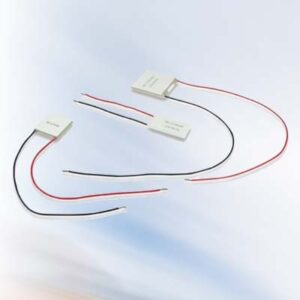

High Performance Modules
Our High-Performance Peltier/Thermoelectric Modules (TEM´s) are typically used in experimental instruments, chillers, PCR cyclers, and analyzers.
Because of the larger hot side ceramic, these modules bring extra dissipation capacity, higher cooling efficiency and longer working life. Our standard list of High-Performance TEM includes sizes from 30x30mm to 55x55mm.
| Part No. | Model No. | I max (A) | Th = 27°C | Dimensions (mm) | |||||
| Q max (W) | V max (V) | ΔT max (°C) | A | B | C | D | |||
| TEM47471 | HP-127040 | 3.9 | 35.0 | 15.4 | 71 | 30 | 30 | 34 | 3.6 |
| TEM47472 | HP-127040 | 3.9 | 37.0 | 15.4 | 72 | 40 | 40 | 44 | 4.6 |
| TEM47473 | HP-127060 | 6.0 | 55.0 | 15.4 | 72 | 40 | 40 | 44 | 3.9 |
| TEM47474 | HP-161050 | 5.5 | 60.8 | 20.0 | 67 | 40 | 40 | 44 | 3.6 |
| TEM47475 | HP-161070 | 7.0 | 77.8 | 18.3 | 70 | 40 | 40 | 44 | 3.3 |
| TEM47476 | HP-127080 | 8.5 | 77.0 | 15.4 | 72 | 40 | 40 | 44 | 3.3 |
| TEM47477 | HP-199120 | 12.4 | 166.4 | 24.1 | 70 | 40 | 40 | 44 | 3.1 |
| TEM47478 | HP-241060 | 6.0 | 106.0 | 28.2 | 72 | 55 | 55 | 55 | 4.3 |
All specifications are subject to change without notice.
