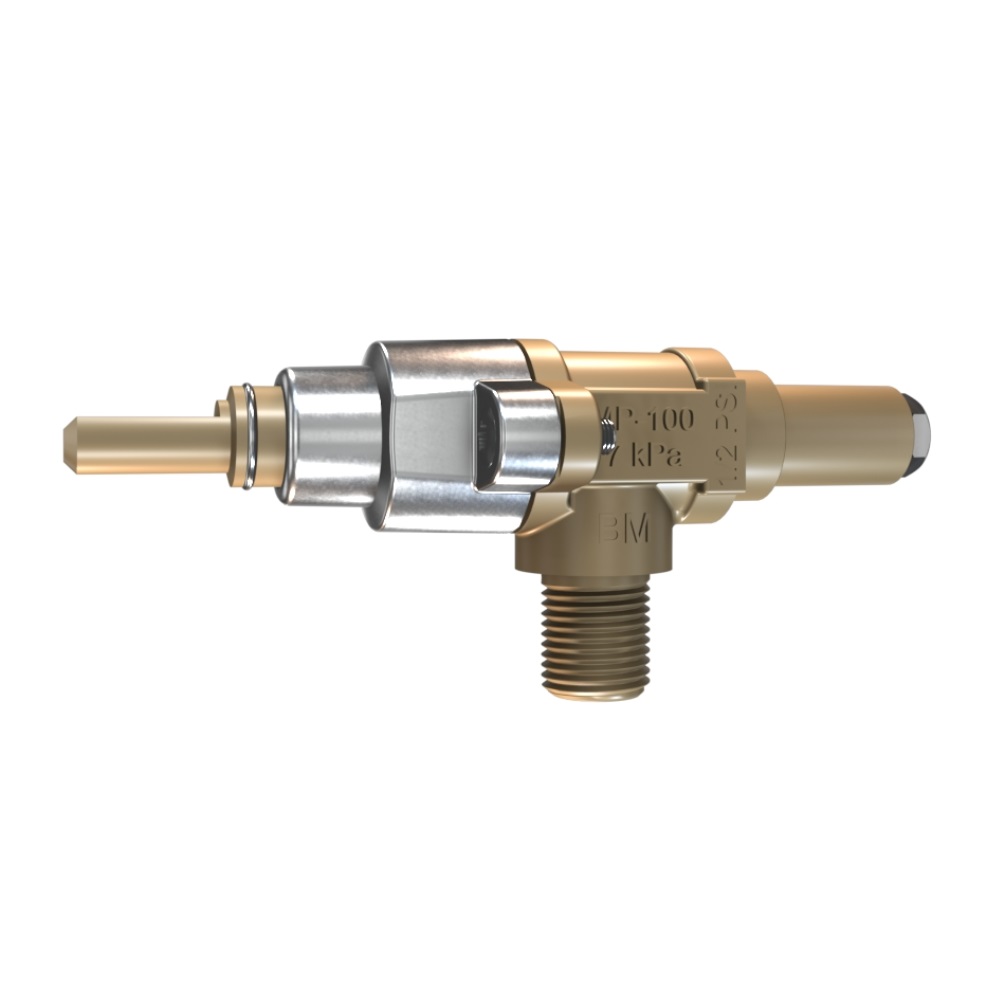

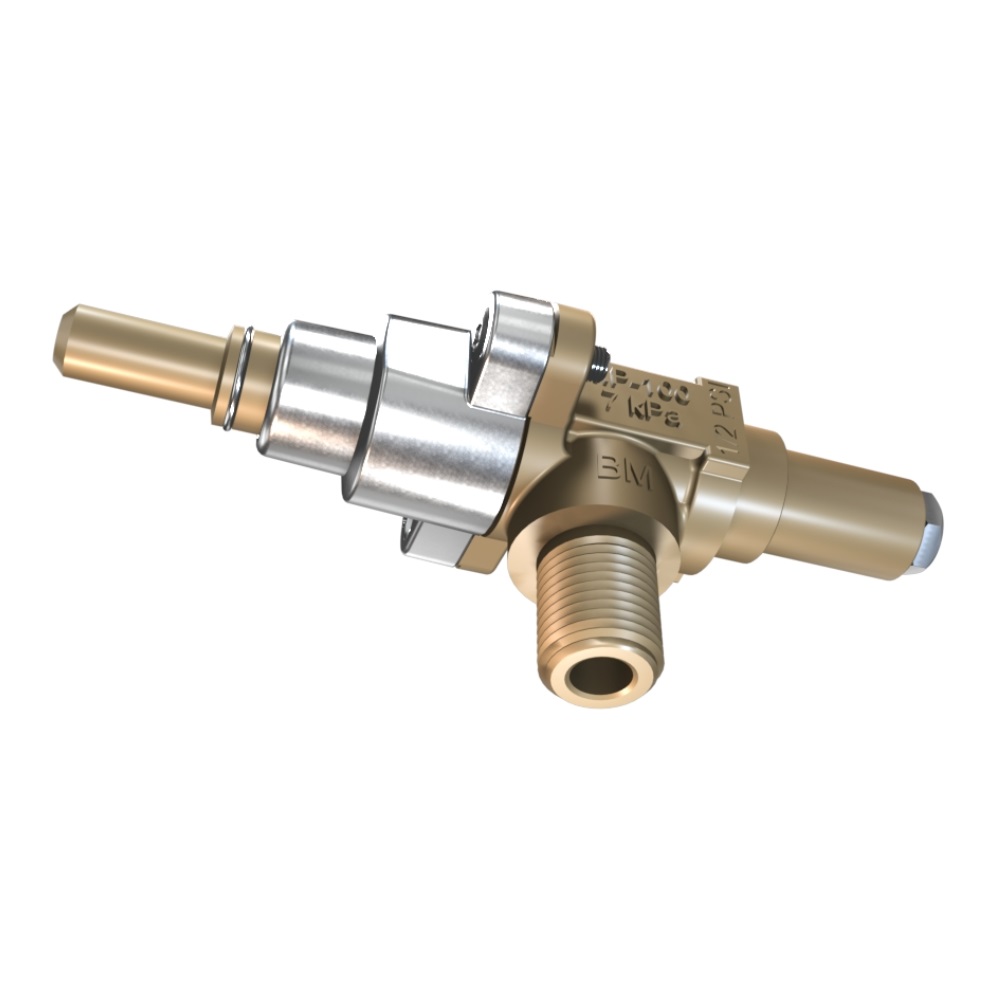

ART.100 Series

CE Approval: in accordance with GAR EU/2016/426 – Certificate N°: CE-0085AQ0788

• Working temperature: 0°C – 150°C / 0°C – 80°C
• Max working pressure: 7kPa (65 mbar)
• Working angular rotation: 90°-160°-225°
• Position of maximum: 90°
• Gas inlet connection: double conus ring screwing with cap nut or conical external screw thread
• Gas outlet connection: various
• Knob shaft connection: max. Ø 8
• Fitted with: adjustable low rate screw
• Applications: cooking
• Group: 2
• Installation position: any
• Kind of gas: I, II, III
• Tap endurance test: 40.000 (CE)

Flow rates: Outlet ¼

Flow rate index: ≥ 95% of 340* L/h

Reduced flow rate (min or by-pass): value declared ± 5 %; max 80* L/h

* = (Air – ΔP 1 mbar – inlet pressure: 20 mbar)
