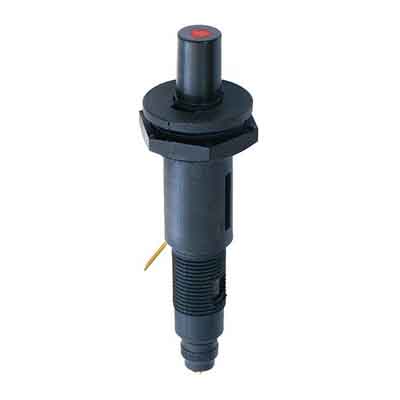

IPI-425

AP400 SERIES Mod. AP425

Connection hole Ø 22mm

• Fixing with nut M22 x 1.5mm
• Assembly with rubber button cover and nickel-plated metal fixing ring

High Voltage Contact (A)

• Ø 2.4mm
• 2.8 x 0.5mm
• 2.8 x 0.8mm

Ground Terminal (T)

• 0.3 x 2mm internal with exit under the head
• 0.3 x 2.8mm standard lengths (L) 10mm or 63mm  (side exit)
• 0.5 x 2.8mm standard length (L) 10mm or 63mm  (side exit)

Button length

• 15mm or 20mm
