IPI-480

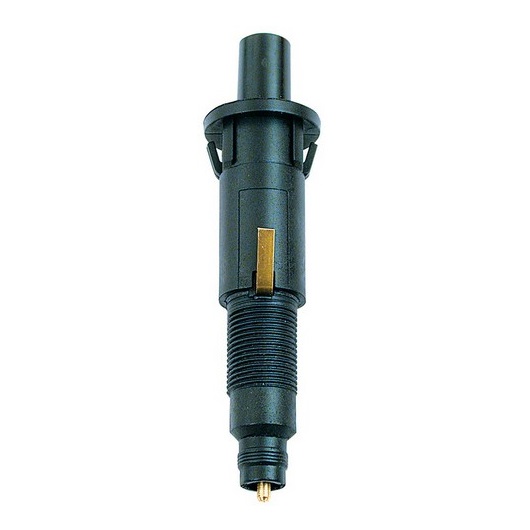

AP400 SERIES Mod. AP480

Connection hole Ø 18mm

Fixing with snap clip available in the following versions:

• For thicknesses (S) 0.8 – 1mm
• For thicknesses (S) 2 mm

High Voltage Contact (A)

• Ø 2.4mm
• 2.8 x 0.5mm
• 2.8 x 0.8mm

Ground Terminal (T)

• 0.3 x 2mm internal with exit under the head
• 0.3 x 2.8mm standard lengths (L) 10mm or 63mm  (side exit)
• 0.5 x 2.8mm standard length (L) 10mm or 63mm  (side exit)

Button length:

• 15mm or 20mm
