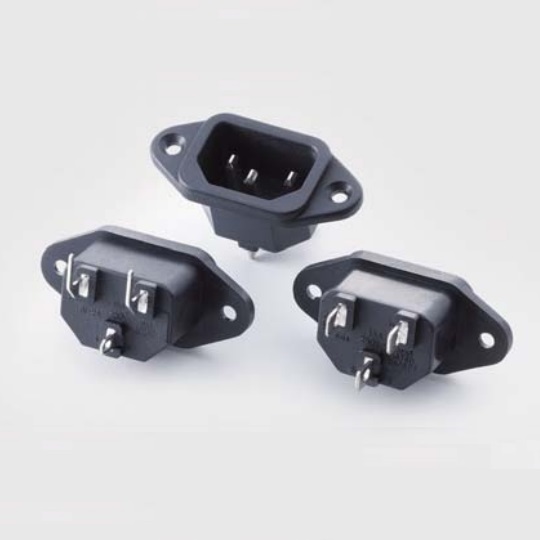

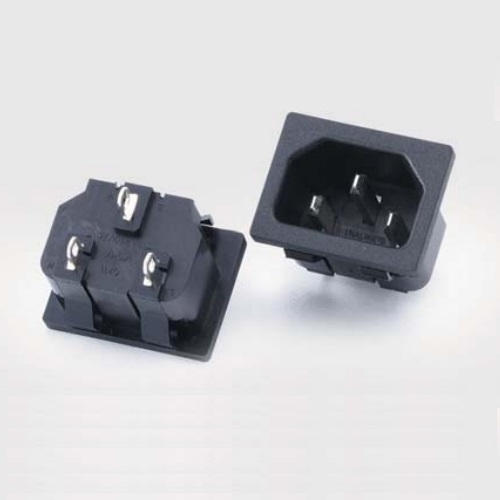

C14 Inlet 0707-1 & 0711 Series

 IEC Connector EN60320 C14

• Compatible with C13 Plug
• Power Rating: 10A, 250VAC Europe & 15A, 250VAC North America
• Electric Strength: 2,000VAC for 1 Minute
• Contact Resistance: 30MΩ Max.
• Insulation Resistance: 100MΩ Min. @ 500V DC
• Operating Temperature: +100℃ (+90℃)
• Materials: Thermoplastic UL Flammability, 94V-0 & Copper Alloy
• Panel Thickness (Snap-fit): 0.8mm ~ 2mm
