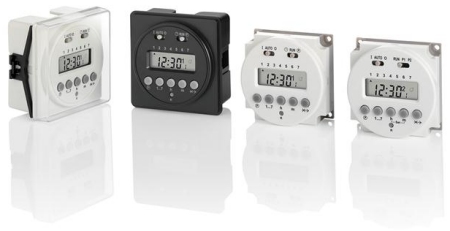

Tempomatic 884-V

TECHNICAL DATA
– Nominal voltage 12 V AC/DC, 24 V AC/DC, 110 V AC, 220-240 V AC
– Nominal frequency 50/60 Hz
– Suitable for protection class I and II equipment
– Live parts must not be accessible after installation!
– Max. admissible ambient temperature -10°C…+55°C
– Contact rating Variotime Single
1 x 10 (4) A/250 V AC in build-in housing
1 x 16 (2) A/250 V AC in panel-mounting enclosure on/off relay, optional
with changeover relay
– Contact rating Variotime Twin
2 x 5 (2) A/250 V AC
2 x on/off relay, optional 1 x on/off and 1 x changeover relay
– Stand by power consumption < 0.5 W - Switching program 16 programmable switching points (8 x ON and 8 x OFF) Shortest switching interval 1 minute A maximum of 112 switchings per week can be achieved blocks of weekdays with identical switching points: Monday…Friday (1+2+3+4+5) Monday…Saturday (1+2+3+4+5+6) Monday…Sunday (1+2+3+4+5+6+7) Saturday/Sunday (6+7) - 24 hour program only: 16 switching points within 24 hours - Connections to mains supply and relays via tab terminals 6.3 x 0.8 mm in compliance with EN 61210 - Position of terminals - Build-in housing: radial, South or North, optional East or West - Panel-mounting enclosure: axial, South - Approvals: VDE-ENEC and UL-CSA (technical conditions apply)
