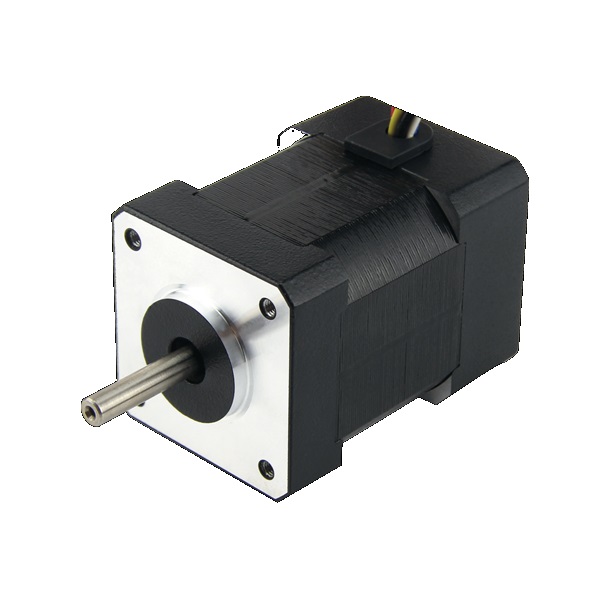

42mm FL42BLB Series
| P/N | Frame Size | Rated Power (W) | Body Length (mm) | Rated Voltage (V) | Rated Torque (Nm) | Rated Current (A) | Rated Speed (rpm) |
| FL42BLB04 | 42 | 138 | 100.3 | 24 | 0.44 | 7 | 3000 |
| FL42BLB03 | 42 | 94 | 80.3 | 24 | 0.03 | 4.8 | 3000 |
| FL42BLB02 | 42 | 53.5 | 60.3 | 24 | 0.17 | 2.83 | 3000 |
| FL42BLB01 | 42 | 20 | 40.3 | 24 | 0.064 | 1.16 | 3000 |
Full specification available on request
- BLDC Motor
- Frame Size: 42 x 42mm
- Sintered Magnet
- Power: 20W ~ 138W
- Voltage: 24VDC ~ 48VDC
- Rated Torque: 60mNm ~ 440mNm
- Feature summary：
- Wide speed range, flat torque
- Excellent speed stability
- Compact and high power
- High efficiency and energy-saving
