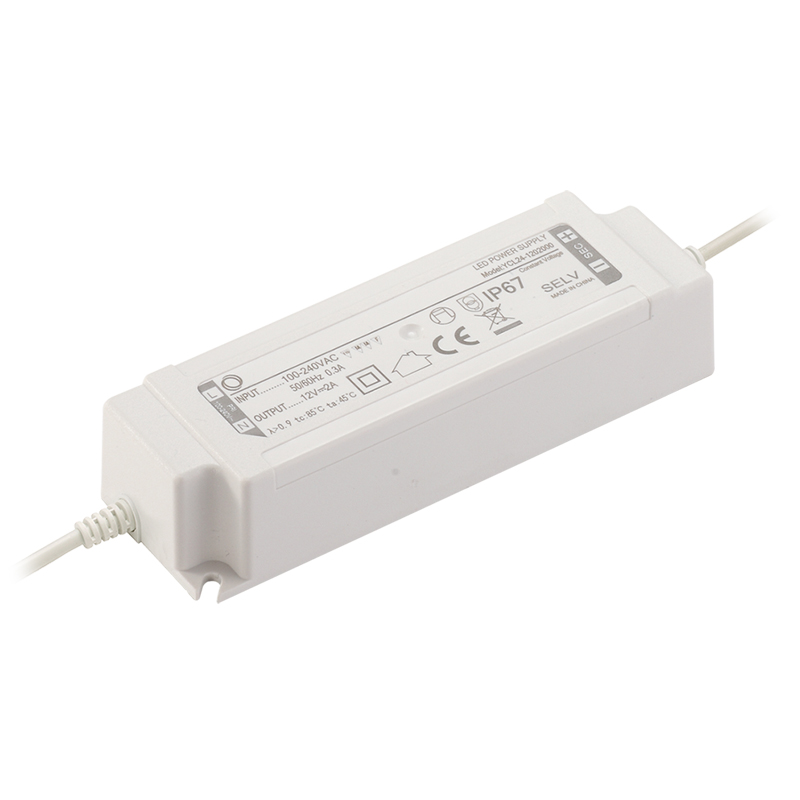

24W IP67 Constant Voltage Type YCL24
– Universal Input: 90-265V AC 50/60Hz
– RoHS Compliance
– EMI Standard EN55015
– Safety Standard: EN61347-1, EN61347-2-13, UL8750
– Inrush current<65A AC230V/50Hz – High efficiency & low power consumption
– Short Circuit, Over Current and Over Voltage Protection
– Over temperature protection
– 100% full load burn-in test
– IP67 Protection rating
Constant Voltage
Model | Power (max.) | Input Voltage | Output Voltage | Output Current (max.) | Voltage Tolerance | Ripple(P-P) | Efficiency | Dimension(LxWxH) |
YCL24-12 | 24W | 220-240V AC | 12V | 2A | ±5% | <1% | 85% | 118x35x26mm |
YCL24-24 | 24W | 220-240V AC | 24V | 1A | ±5% | <1% | 86% | 118x35x26mm |
Model | Power (max.) | Input Voltage | Output Voltage | Output Current (max.) | Voltage Tolerance | Ripple(P-P) | Efficiency | Dimension(LxWxH) |
YCL24-12 | 24W | 90-265V AC | 12V | 2A | ±5% | <1% | 85% | 118x35x26mm |
YCL24-24 | 24W | 90-265V AC | 24V | 1A | ±5% | <1% | 86% | 118x35x26mm |
