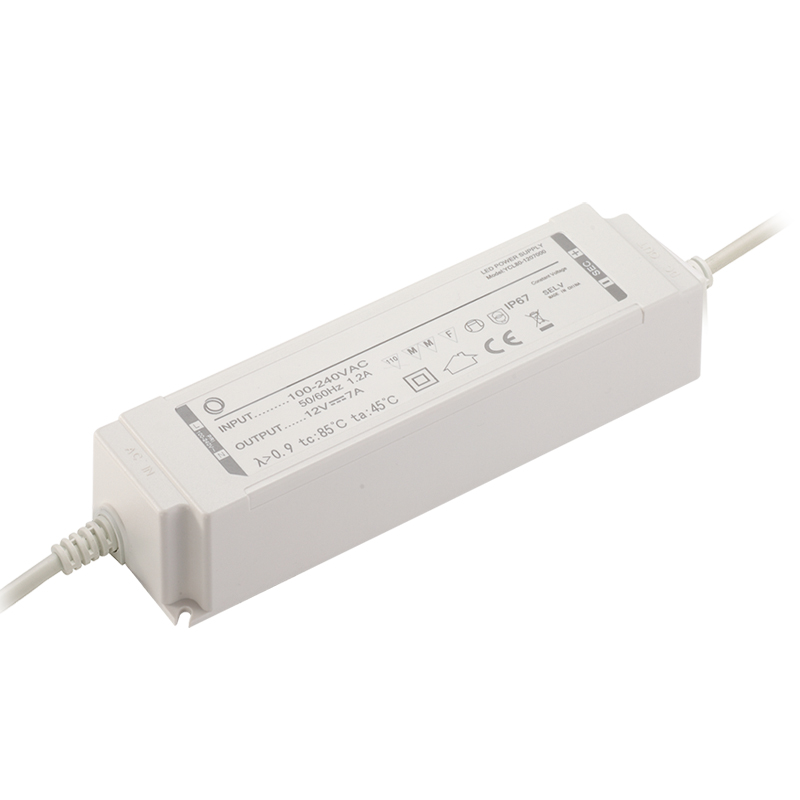

80W IP67 Constant Current Type YCL80
– Universal Input: 90-265V AC 50/60Hz
– RoHS Compliance
– EMI Standard EN55015
– Safety Standard: EN61347-1, EN61347-2-13, UL8750
– Inrush current<65A AC230V/50Hz – High efficiency & low power consumption
– Short Circuit, Over Current and Over Voltage Protection
– Over temperature protection
– 100% full load burn-in test
– Dimming available
Constant Current
Model | Power (max.) | Input Voltage | Output Current | Output Voltage (max.) | PF | Current Tolerance | Efficiency | Dimension(LxWxH) |
YCL80-1050 | 80W | 220-240V AC | 1050mA | 76V | ≥0.9 | ±5% | 90% | 190x52x37mm |
YCL80-1400 | 80W | 220-240V AC | 1400mA | 57V | ≥0.9 | ±5% | 90% | 190x52x37mm |
YCL80-2100 | 80W | 220-240V AC | 2100mA | 38V | ≥0.9 | ±5% | 90% | 190x52x37mm |
YCL80-4200 | 80W | 220-240V AC | 4200mA | 19V | ≥0.9 | ±5% | 90% | 190x52x37mm |
Model | Power (max.) | Input Voltage | Output Current | Output Voltage (max.) | PF | Current Tolerance | Efficiency | Dimension(LxWxH) |
YCL80-1050 | 72W | 90-265V AC | 1050mA | 68V | ≥0.9 | ±5% | 90% | 190x52x37mm |
YCL80-1400 | 72W | 90-265V AC | 1400mA | 51V | ≥0.9 | ±5% | 90% | 190x52x37mm |
YCL80-2100 | 72W | 90-265V AC | 2100mA | 34V | ≥0.9 | ±5% | 90% | 190x52x37mm |
YCL80-4200 | 72W | 90-265V AC | 4200mA | 17V | ≥0.9 | ±5% | 90% | 190x52x37mm |
