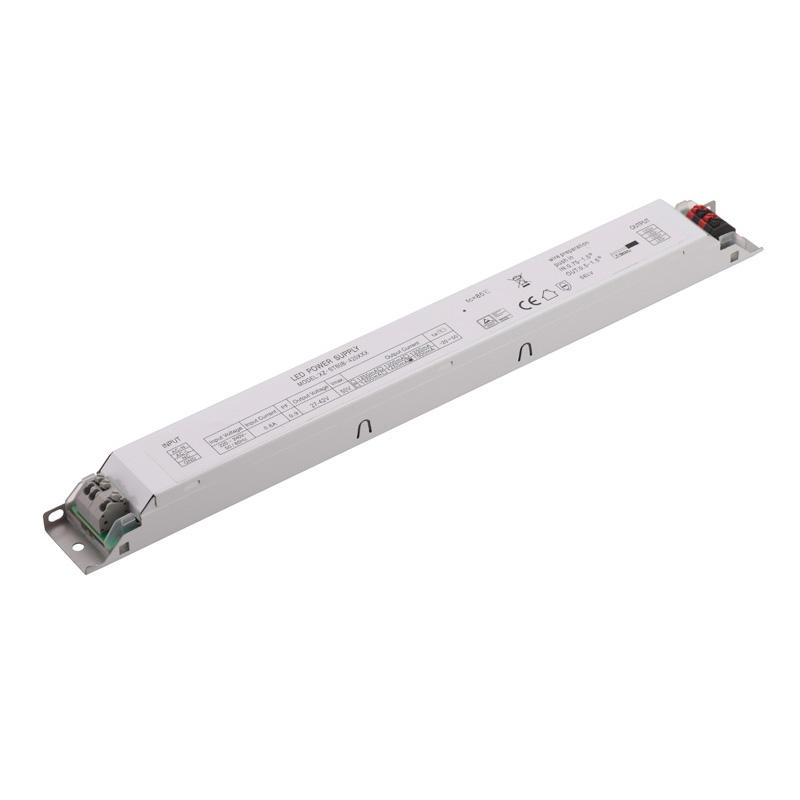

20W Constant Current Type YSL20B
– Universal Input: 90-265V AC 50/60Hz
– RoHS Compliance
– EMI Standard EaN55015
– Safety Standard: EN61347-1, EN61347-2-13, UL8750
– Inrush current<65A AC230V/50Hz – High efficiency & low power consumption
– Short Circuit, Over Current and Over Voltage Protection
– Over temperature protection
– 100% full load burn-in test
– Super Slim Design
Constant Current
Model | Power (max.) | Input Voltage | Output Voltage | Output Voltage (max.) | PF | Voltage Tolerance | Efficiency | Dimension(LxWxH) |
YSL20B-500 | 20W | 220-240V AC | 500mA | 100V | ≥0.95 | ±5% | 88% | 210x30x20mm |
YSL20B-700 | 20W | 220-240V AC | 700mA | 71V | ≥0.95 | ±5% | 88% | 210x30x20mm |
YSL20B-1050 | 20W | 220-240V AC | 1050mA | 47V | ≥0.95 | ±5% | 88% | 210x30x20mm |
YSL20B-1400 | 20W | 220-240V AC | 1400mA | 35V | ≥0.95 | ±5% | 88% | 210x30x20mm |
Model | Power (max.) | Input Voltage | Output Voltage | Output Voltage (max.) | PF | Voltage Tolerance | Efficiency | Dimension(LxWxH) |
YSL20B-500 | 20W | 90-265V AC | 500mA | 40V | ≥0.9 | ±5% | 88% | 210x30x20mm |
YSL20B-700 | 20W | 90-265V AC | 700mA | 28.5V | ≥0.9 | ±5% | 88% | 210x30x20mm |
YSL20B-1050 | 20W | 90-265V AC | 1050mA | 19V | ≥0.9 | ±5% | 88% | 210x30x20mm |
YSL20B-1400 | 20W | 90-265V AC | 1400mA | 14.2V | ≥0.9 | ±5% | 88% | 210x30x20mm |
