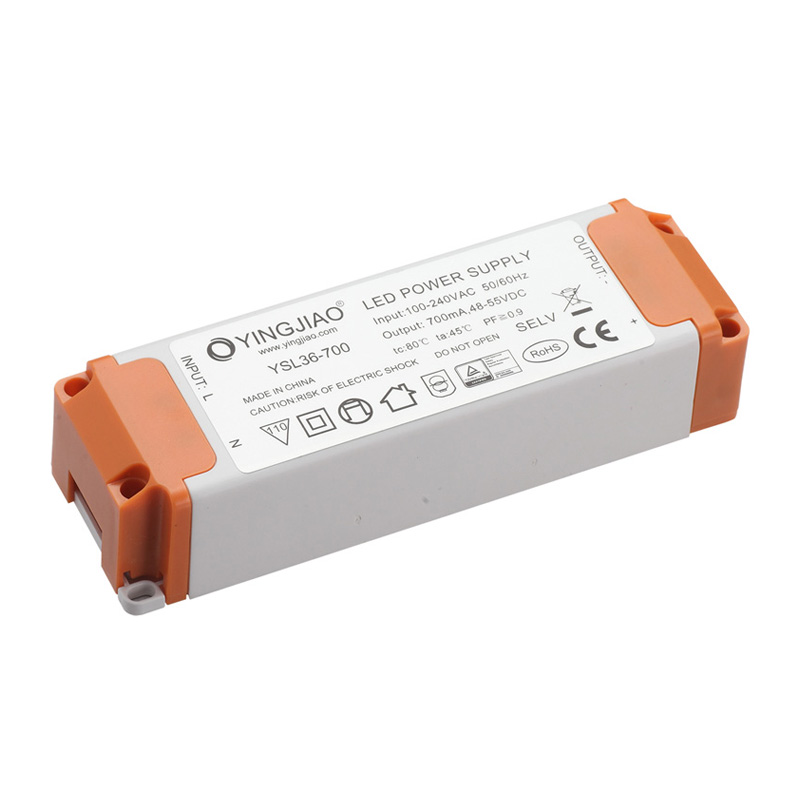

36W Constant Current Type YSL36
– Universal Input: 90-265V AC 50/60Hz
– RoHS Compliance
– EMI Standard EN55015
– Safety Standard: EN61347-1, EN61347-2-13, UL8750
– Inrush current<65A AC230V/50Hz – High efficiency & low power consumption
– Short Circuit, Over Current and Over Voltage Protection
– Over temperature protection
– 100% full load burn-in test
– Auto restart after remove of fault conditions
Constant Current
Model | Power (max.) | Input Voltage | Output Voltage | Output Voltage (max.) | PF | Voltage Tolerance | Efficiency | Dimension(LxWxH) |
YSL36-700 | 36W | 220-240V AC | 700mA | 57V | ≥0.9 | ±5% | 88% | 133x42x30mm |
YSL36-1050 | 36W | 220-240V AC | 1050mA | 38V | ≥0.9 | ±5% | 88% | 133x42x30mm |
YSL36-1400 | 36W | 220-240V AC | 1400mA | 28.5V | ≥0.9 | ±5% | 88% | 133x42x30mm |
YSL36-2100 | 36W | 220-240V AC | 2100mA | 19V | ≥0.9 | ±5% | 88% | 133x42x30mm |
Model | Power (max.) | Input Voltage | Output Voltage | Output Voltage (max.) | PF | Voltage Tolerance | Efficiency | Dimension(LxWxH) |
YSL36-700 | 36W | 90-265V AC | 700mA | 51V | ≥0.9 | ±5% | 90% | 133x42x30mm |
YSL36-1050 | 36W | 90-265V AC | 1050mA | 34V | ≥0.9 | ±5% | 90% | 133x42x30mm |
YSL36-1400 | 36W | 90-265V AC | 1400mA | 25V | ≥0.9 | ±5% | 90% | 133x42x30mm |
YSL36-2100 | 36W | 90-265V AC | 2100mA | 17V | ≥0.9 | ±5% | 90% | 133x42x30mm |
