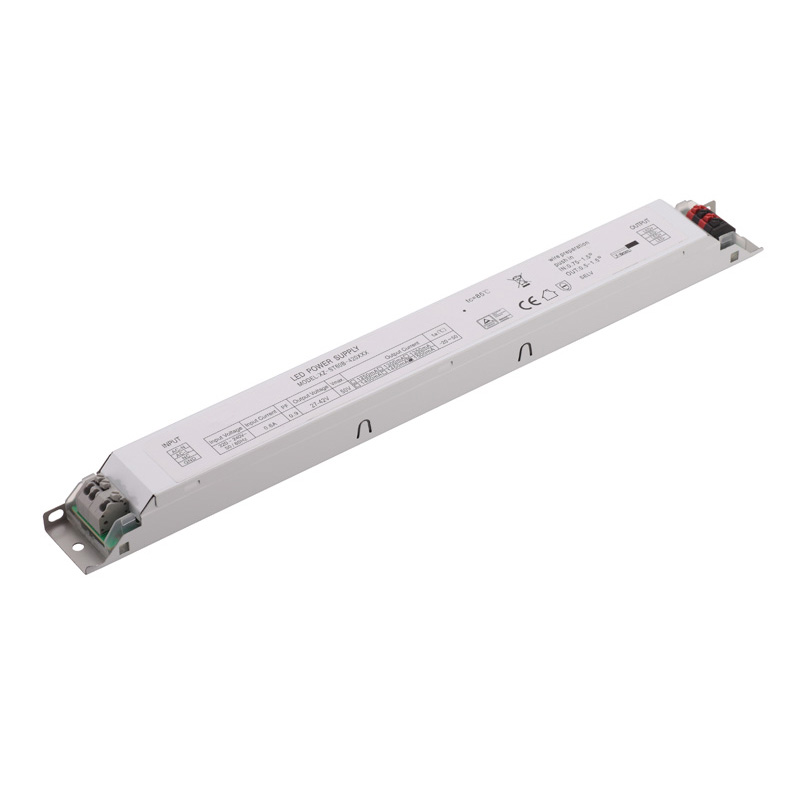

60W Type YSL60B
– Universal Input: 90-265V AC 50/60Hz
– RoHS Compliance
– EMI Standard EaN55015
– Safety Standard: EN61347-1, EN61347-2-13, UL8750
– Inrush current<65A AC230V/50Hz – High efficiency & low power consumption
– Short Circuit, Over Current and Over Voltage Protection
– Over temperature protection
– 100% full load burn-in test
– Super Slim Design
Constant Voltage
Model | Power (max.) | Input Voltage | Output Voltage | Output Current(max.) | PF | Voltage Tolerance | Efficiency | Dimension(LxWxH) |
YSL60B-12 | 60W | 220-240V AC | 12V | 5A | ≥0.9 | ±5% | 90% | 280x30x28mm |
YSL60B-24 | 640W | 220-240V AC | 24V | 2.5A | ≥0.9 | ±5% | 92% | 280x30x28mm |
Model | Power (max.) | Input Voltage | Output Voltage | Output Current(max.) | PF | Voltage Tolerance | Efficiency | Dimension(LxWxH) |
YSL60B-12 | 50W | 90-265V AC | 12V | 4.16A | ≥0.95 | ±5% | 90% | 280x30x28mm |
YSL60B-24 | 50W | 90-265V AC | 24V | 2.08A | ≥0.95 | ±5% | 92% | 280x30x28mm |
