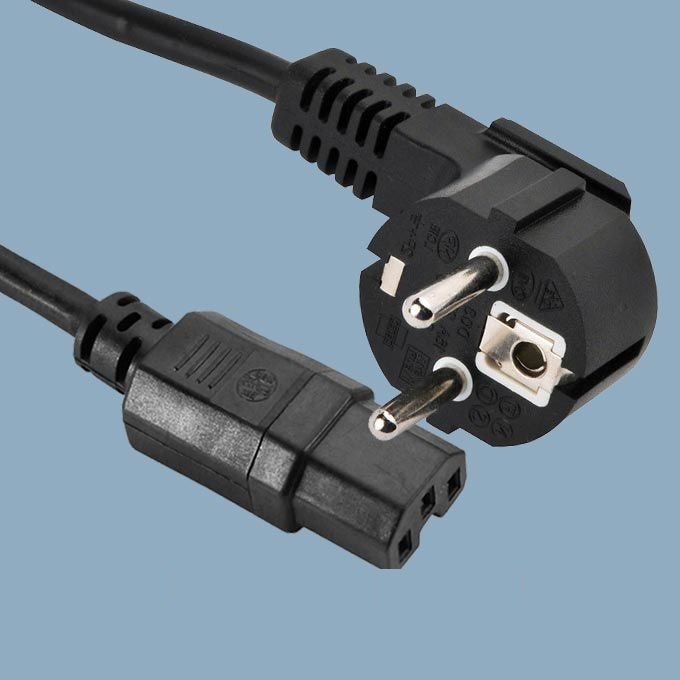

PC04/41 – CEE7/7 Plug to IEC C15
European R/A Schuko Plug to IEC C15 Connector Power Cord
Europe CEE7/7 Schuko standard 3 prong plug to IEC 60320 C15 connector
VDE certification
RoHS & REACH compliant
The C15 connectors work to a temperature rating of 120°C, for high-temperature applications such as electric kettles and computer networking.
| Specification | |
| Male Plug | Europe CEE7/7 R/A Schuko plug |
| Female Receptacle | IEC 60320 C15 Europe |
| Maximum Current rating | 10A |
| Maximum Voltage | 250VAC |
| Number of Poles and Wires | 2 poles, 3 wires |
| Outer Mold Material | 50P PVC |
| Blade Material | Nickel coated Brass |
| Colour | Standard Black or White. Custom colours available |
| Cable Length | Custom lengths available |
| Temperature Rating | -20 deg.C ~ 120 deg.C |
| Certifications | CEBEC, DEMKO, FI, KEMA, NEMKO, NF, OVE, SEMKO, TUV & VDE |
| Environmental Certifications | RoHS, REACH |
| Testing | Hi-Pot (Dielectric Withstanding Voltage), Polarity (pinout), and Continuity |
| Available Wire Styles | |
| Cord Type | Electrical Rating (Amps/Volts) |
| H05RR-F 3G 0,75 mm² (max. 2m) | 10/250 |
| H05RR-F 3G 1,0 mm² & 1,5 mm² | |
| H03RT-H 3G 0,75 mm² (max. 2m) | |
| H03RT-H 3G 1,0 mm² |
