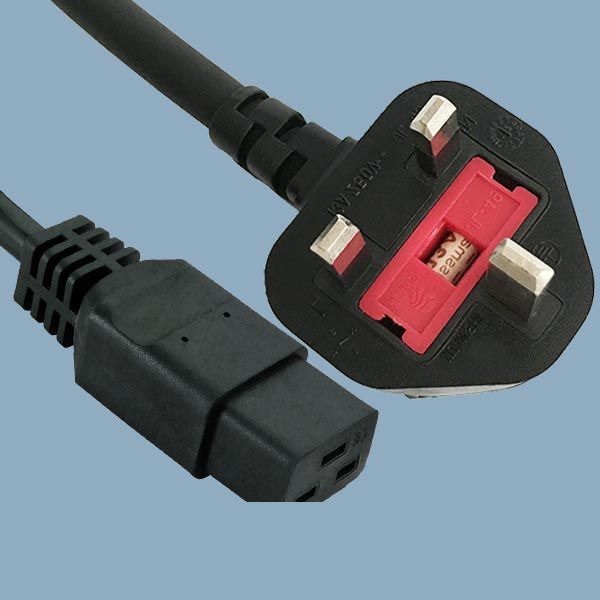

PC13/44 – BS1363A to IEC C19
UK Moulded Plug to IEC 60320 C19 Power Cord
UK BS 1363A Plug to IEC 60320 C19 connector Power Cord
Approved by UK ASTA, Europe VDE
The C19 IEC receptacle is commonly used in high-power data center and server environments with devices such as servers, PDUs, and other data center and network gear
RoHS / REACH compliant
| Specification | |
| Male Plug | BS 1363(A) Fused Plug |
| Female Receptacle | IEC 60320 C19 |
| Amperage | Up to 13A |
| Voltage | Up to 250VAC |
| Outer Mold Material | 50P PVC |
| Blade Material | Nickel coated Brass |
| Colour | Standard Black or White. Custom colours available |
| Cable Length | Custom lengths available |
| Certifications | BSI/VDE |
| Environmental Certifications | RoHS, REACH |
| Testing | Hi-Pot (Dielectric Withstanding Voltage), Polarity (pinout) and Continuity |
| Available Wire Styles | |
| Cord Type | Electrical Rating (Amps/Volts) |
| H05VV-F 3G x 1.0 mm² max. 2m | 10~16/250 |
| H05VV-F 3G x 1.5 mm² | |
| H05RR-F 3G x 1.0 mm² max. 2m | |
| H05RR-F 3G x 1.5 mm² | |
| H05RN-F 3G x 1.0 mm² max. 2m | |
| H07RN-F 3G x 1.0 mm² max. 2m | |
| H07RN-F 3G x 1.5 mm² | |
| H05V2V2-F 3G x 1.0 mm max. 2m | |
| H05V2V2-F 3G x 1.5 mm max. 2m |
