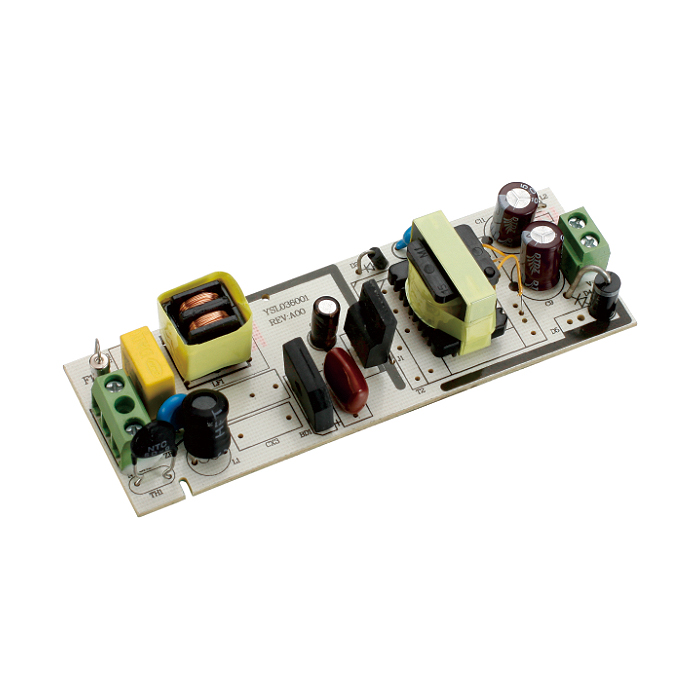

36W Type YSLO36
Rated Power: 36W
Input: 100-240V AC 50 / 60Hz
Output: 5-36V
Dimension: 105*36*16mm
N.W.: 80g
| Model: | YSLO36-0904000 | YSLO36-1203000 | YSLO36-1502400 | YSLO36-2001800 | YSLO36-2501440 | YSLO36-4800750 |
| DC Voltage: | 9V | 12V | 15V | 20V | 25V | 48V |
| Rated Current: | 4A | 3A | 2.4A | 1.8A | 1.44A | 0.75A |
| Current Range: | 0-4A | 0-3A | 0-2.4A | 0-1.8A | 0-1.44A | 0-0.75A |
| Rated Power: | 36W | 36W | 36W | 36W | 36W | 36W |
| Ripple & Noise(max.): | 90mVp-p | 120mVp-p | 200mVp-p | 200mVp-p | 250mVp-p | 480mVp-p |
| Voltage Tolerance: | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% |
| Line Regulation: | ±3% | ±3% | ±3% | ±3% | ±3% | ±3% |
| Load Regulation: | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% |
| Efficiency: | 88.30% | 88.30% | 88.30% | 88.30% | 88.30% | 88.30% |
| Setup,Rise,Hold up time: | 3 second max./40 MS max./5 MS max. at 100VAC input and output max. load. | |||||
| Model： | YSLO36 |
| Power: | 36W max. |
| Input： | 100-240VAC 50/60Hz |
| Output Voltage: | 3-48V |
| Output Current: | 0.01-4A |
| Input current: | 0.8A max. |
| Inrush Current: | 50 Amps max. at 240VAC/50Hz,full load |
| Leakage Current: | 0.25mA Max. at 240VAC input |
| Energy Efficiency Level VI : | CoC 5 / DoE 6 / CEC VI |
| No Load Power Consumption ： | ＜0.075W |
| Protections： | Short Circuit /Over Current /Over Voltage |
| Short Circuit Protection (SCP)： | Protection to Zero Voltage |
| Over Voltage Protection (OVP): | ≤Vout*150% |
| Over Current Protection (OCP): | 110%-180% |
| Working TEMP.: | -20°C-50°C |
| Working Humidity： | 5%-90% RH non-condensing |
| Storage TEMP.,Humidity and altitude: | -40℃ ~+70°C ambient temperature and a 5% to 95% relative humidity range throughout an altitude range of -60 meters to +5000 meters AMSL. |
| Input Plug: | EU,US,UK,AU etc. type according to customer’s choice |
| Certificates and approvals: | UL,GS,CE,EMC,SAA,FCC,CB,PSE,CCC,RoHS,REACH |
| EMI EMISSION: | Radiation Test&Conduction Test: EN 55022/FCC Part 15 Harmonic Test : EN 61000-3-2 Flicker Test : EN 61000-3-3 |
| EMS IMMUNITY: | ESD Test:EN 61000-4-2 RS Test:EN 61000-4-3 EFT Test:EN 61000-4-4 Surge Test:EN 61000-4-5 CS Test:EN 61000-4-6 DIP Test:EN 61000-4-11 |
| MTBF: | 100000 hours minimum at full load at 25℃ ambient |
| Life: | 3-5 years alternative |
| Dimension: | 105*36*16mm |
| Weight: | 80g |
| Packing: | 50PCS/CTN,45*26*30cm |
