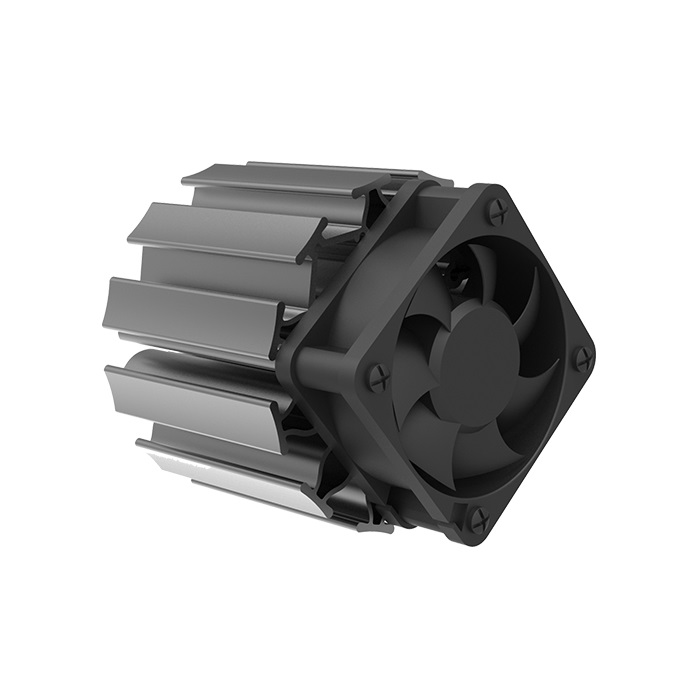

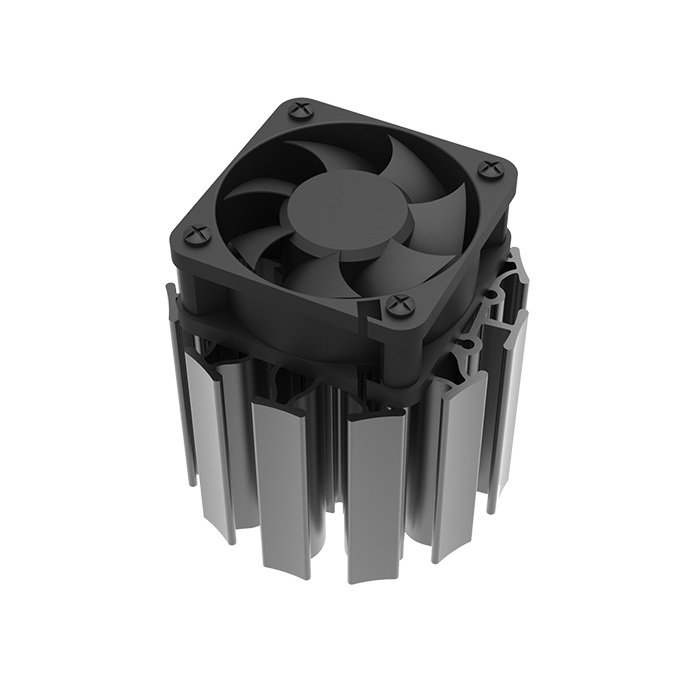

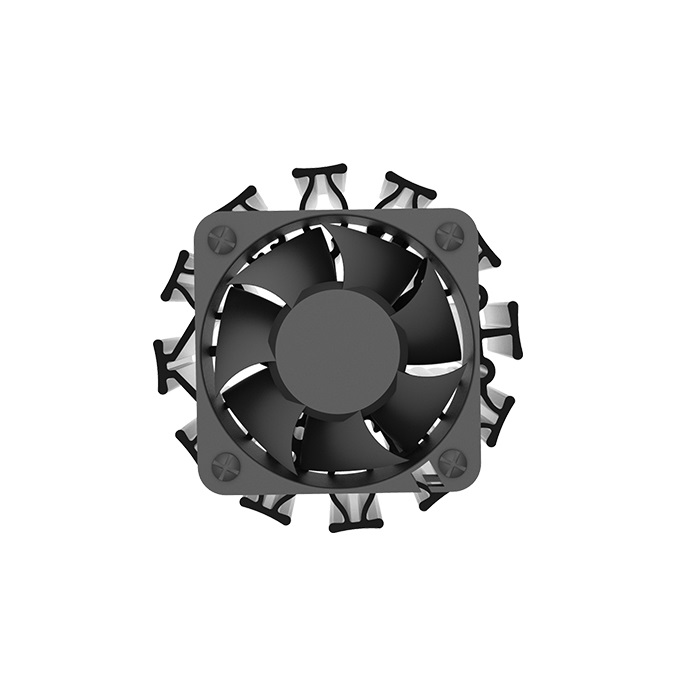

ActiLED-F7070
LED Active Heat Sink Ø70mm x H70mm
Designed for Spotlight and Downlight 9000lm
LED Active Heat Sink Ø70mm x H70mm
Designed for Spotlight and Downlight 9000lm
Rth 0.55°C/W
Suitable for 40W~70W COB
Self-taping holes, or custom mounting holes, for Zhaga book 3 and book 11 LED modules
Standard finish-Black anodized
| Series Name | ActiLED Active Heat Sink | ||
| Series Number | ActiLED-F7070 | ||
| Manufacturing Technology | Aluminum extrusion | ||
| Material | AL6063-T5 | ||
| Colour & Finish | Black Anodized | ||
| Certification | CE, ROHS, WEEE | ||
| Fan data | Size: 50x50x20mm | Electric power: 0.36W | Speed: 2900RPM |
| Diameter (mm) | Ø70 | ||
| Heat sink Height (mm) | 50 | ||
| Max. Lumen | 9000 lm | ||
| Dissipated Power (Ths-amb, 50°C) | 58.4W | ||
| Thermal Resistance Rth | 0.55°C/W | ||
| Cooling Surface Area | 64452.5 mm2 | ||
| Net Weight | 205.0 g | ||
| Quantity (pcs/CTN) | 48 | ||
| LED Module Type | COB | ||
| Environment | Indoor area | ||
| Light Fittings | Down lights, Architectural lights | ||
| Application | Retail & Hospitality, Mall & Museums, Office | ||
| LED brands | Bridgelux, BJB, Citizen, Cree, Edison, GE, LG, Lumileds, Lumens, Luminus, Ledil, Nichia, Osram, Philips, Prolight Opto, Samsung, Seoul, Sharp, Tridonic, Vossloh Schwabe, Xicato, Zhaga | ||
