A4E550S-5DM-AS00 (220/230V)

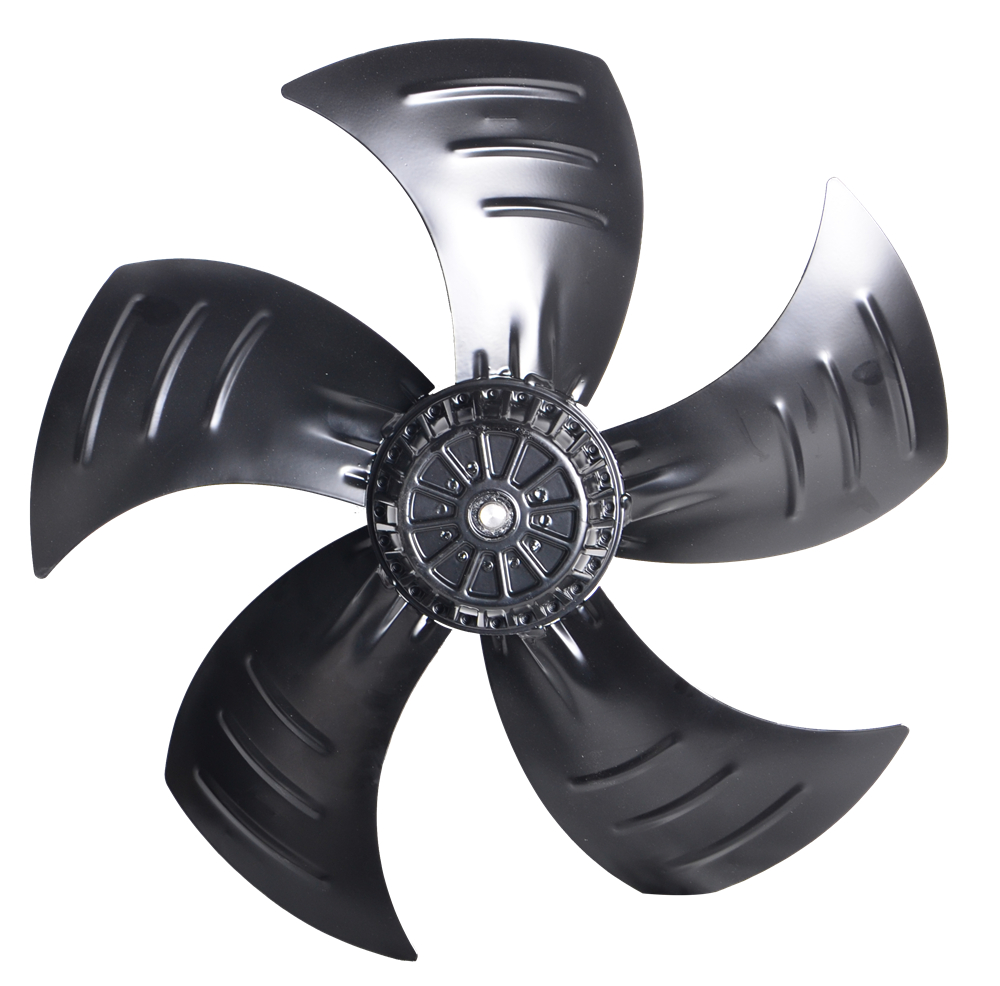

Ø550mm 4 Pole 2 Phase External rotor motor axial fan
Material: Cold rolled steel
Protection Class: IP44
Approvals: CCC CE
Insulation class: F
| Voltage | Frequency | Current | Input Power | Speed | Capacity | Air Flow | Noise | Temperature | Curve No. | Approvals | |
| Type | V | Hz | A | W | rpm | μ F | m3/h/CFM | dB/A | Min/Max(℃) | # | |
| A4E550S-5DM-AS00 | 220/230 | 50 | 2.5 | 550 | 1320 | 12 | 7800/4588 | 73 | -30 /+60 | ① | CCC,CE,RoHS |
| 60 | 3.3 | 725 | 1450 | 8500/5000 | 74 | ② |
