B3P355-EC137-100

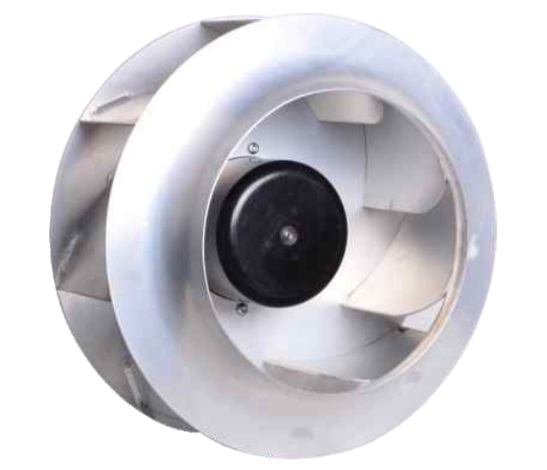

Product Type: Ø355mm 3 phase External rotor motor EC backward curved blower
Material: Sheet aluminium
Type of protection: IP44
Approvals: CCC CE
Insulation class: B
| Type | Curve | Nominal voltage | Frequency | Speed | Power input | Current draw | Sound pressure | Ambient temp. |
| VAC | Hz | rpm | W | A | dB(A) | ℃ | ||
| B3P310-EC137-100 | ① | 3~380 | 50/60 | 2100 | 990 | 1.63 | 79 | -25~+60 |
