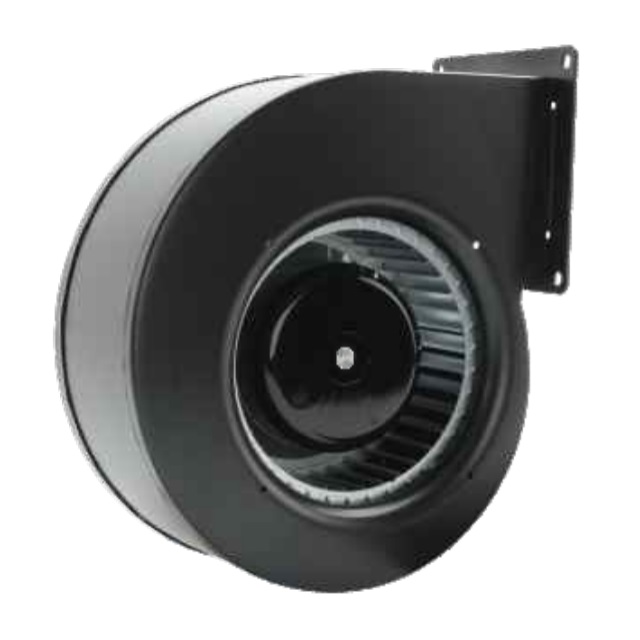

F3P150-EC092-000
Product Type: Ø150mm EC Single Inlet Forward Centrifugal Fan
Voltage: 220 VAC – 50/60Hz
Material: Wheel & Body Steel
Type of protection: IP44
Approvals: CCC CE
Insulation class: B
| Type | Curve | Nominal voltage | Frequency | Speed | Power input | Current draw | Sound pressure | Ambient temp. |
| VAC | Hz | rpm | W | A | dB(A) | ℃ | ||
| F3P150-EC092-000 | ② | 220 | 50/60 | 2550 | 170 | 1.3 | 69 | -25~+60 |
