F3P180-EC102-003

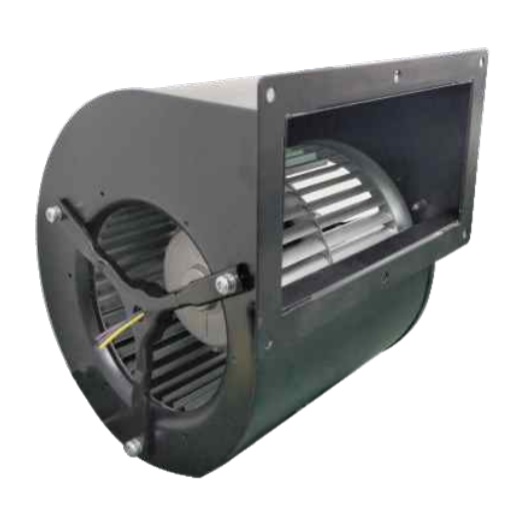

Product Type: Ø180mm EC Double Inlet Forward Centrifugal Fan
Voltage: 220 VAC – 50/60Hz
Material: Wheel & Body Steel
Type of protection: IP44
Approvals: CCC CE
Insulation class: B
| Type | Curve | Nominal voltage | Frequency | Speed | Power input | Current draw | Sound pressure | Ambient temp. |
| VAC | Hz | rpm | W | A | dB(A) | ℃ | ||
| F3P180-EC102-003 | ① | 220 | 50/60 | 1550 | 400 | 1.9 | 74 | -25~+60 |
