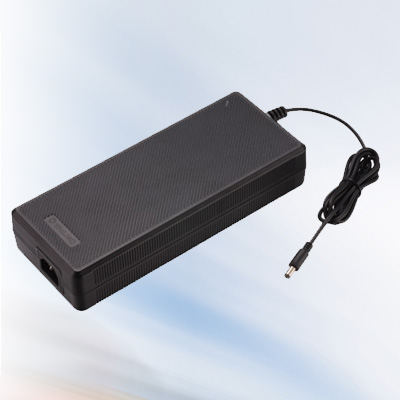

Desktop Type Switching Adapters
Overview text for product here. Can be boiler plate text for all products in the range?
Lorem Ipsum is simply dummy text of the printing and typesetting industry. Lorem Ipsum has been the industry’s standard dummy text ever since the 1500s, when an unknown printer took a galley of type and scrambled it to make a type specimen book. It has survived not only five centuries,
| Model: | YSL6-1200500 | YSL6-2400250 |
| DC Voltage: | 12V | 24V |
| Rated voltage: | 0.5A | 0.25A |
| currente Range: | 6-12V | 12-24V |
| Rated Power: | 6W | 6W |
| Ripple & Noise(max.) | <1% | <1% |
| Voltage Tolerance: | ±5% | ±5% |
| Line Regulation: | ±3% | ±3% |
| Load Regulation: | ±5% | ±5% |
| Efficiency: | 78% | 78% |
| Setup,Rise time | 1 second max./40 MS max. | |
| Model： | YSL6 constant voltage |
| Power: | 6W max. |
| Input： | 100-240VAC 50/60Hz |
| Output Voltage: | 6-36V |
| Output Current: | 100MA-1000MA |
| Inrush Current: | 65 Amps max. at 230VAC/50Hz,full load |
| Leakage Current: | 2.5mA Max. at 264VAC input |
| No Load Power Consumption ： | ＜0.5W |
| Protections： | Short Circuit /Over Current /Over Voltage/over temperature protection |
| Short Circuit Protection (SCP)： | Protection to Zero Voltage |
| Over Voltage Protection (OVP): | ≤Vout*150% |
| Over Current Protection (OCP): | 110%-180% |
| Working TEMP.: | -20°C-50°C |
| Working Humidity： | 5%-90% RH non-condensing |
| Storage TEMP.,Humidity and altitude: | -40℃ ~+70°C ambient temperature and a 5% to 95% relative humidity range throughout an altitude range of -60 meters to +5000 meters AMSL. |
| Certificates and approvals: | CE,EMC,RoHS,REACH |
| EMI EMISSION: | Conducted disturbance at mains terminals:EN 55015 Radiation Test&Conduction Test: EN 55015 Magnetic Emission:EN55015:2013 Harmonic Test : EN 61000-3-2 Voltage fluctuation and Flicker Test : EN 61000-3-3 |
| EMS IMMUNITY: | ESD Test:IEC 61000-4-2 RS Test:IEC 61000-4-3 EFT/B Immunity Test:IEC61000-4-4 Surge Immunity :IEC61000-4-5 Conduted RF Immunity: IEC 61000-4-6 Power frequency magnetic field:IEC 61000-4-11 Voltage dips and interruptions,100% reduction: IEC 61000-4-11 Voltage dips and interruptions,30% reduction: IEC 61000-4-11 |
| MTBF:(平均无故障时间） | 100000 hours minimum at full load at 25℃ ambient |
| Life: | 3-5 years alternative |
| Dimension: | 67.5*31*21mm |
| Weight: | 34g |
| Packing: | 200PCS/CTN,40*27*25cm |
